Load Capacity: 1-500tons
Speed: 20 m/min or as your needs
OEM&ODM: Support
Motors: PMAC / AC high efficiency motors
Platform Customization: Flat platform / V-shaped platform / Fenced platform / Fixture-equipped platform
Advantage: peculiar set-up makes the transfer cart save cost and operate more
It is widely used to transport raw materials, components, and semi-finished products between warehouses, production lines, and workstations. Powered by an electric drive system, this transfer cart helps streamline internal logistics, reduce manual handling, and ensure stable production flow in factories.
Electric Powered Drive System
Provides stable, energy-efficient operation with low noise and zero emissions, suitable for indoor factory environments.
Efficient Factory Material Supply
Ensures timely delivery of materials to production lines, reducing downtime and improving workflow efficiency.
Heavy Load Capacity
Designed to handle light to heavy materials, components, and pallets commonly used in industrial manufacturing.
Flexible Operation
Available in rail-guided or trackless designs to adapt to different factory layouts.
High Safety Standards
Equipped with emergency stop, warning alarm, and anti-collision devices for safe operation.
Robust Industrial Structure
Built with high-strength steel to withstand continuous use in demanding factory conditions.
Load Capacity: Customized according to material weight
Platform Size: Designed to fit pallets, containers, or special materials
Power Supply: Battery-powered, cable reel, or busbar system
Control Mode: Push-button, remote control, or semi-automatic operation
Movement Type: Rail transfer cart or trackless electric transfer cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

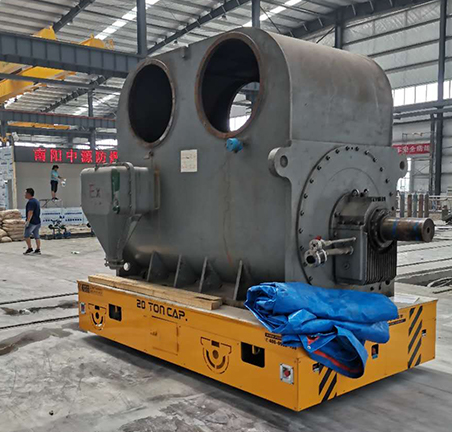

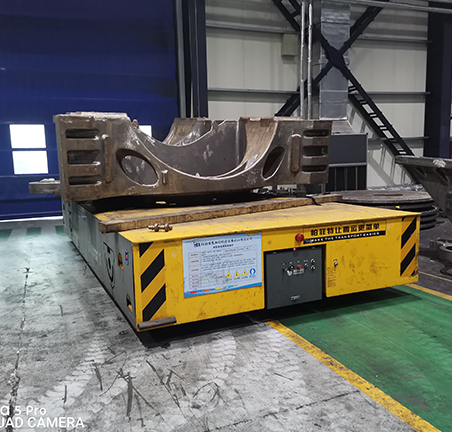

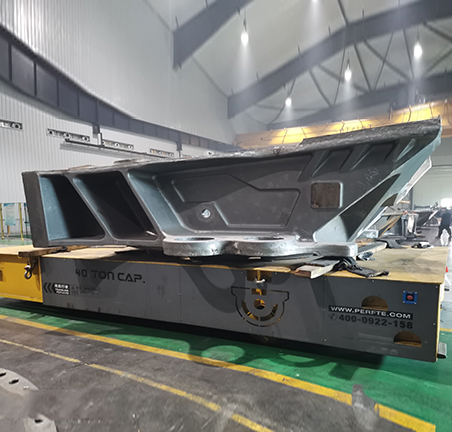

The battery powered electric transfer cart is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The battery powered electric transfer cart has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
