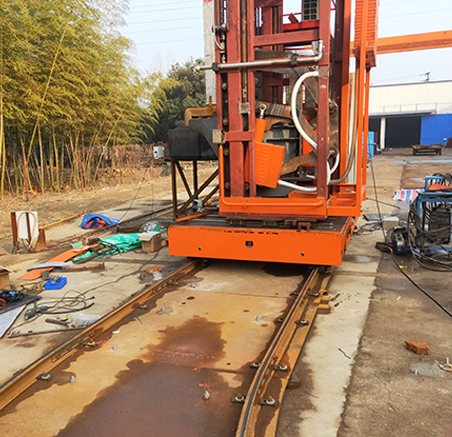

Busbar Powered Transfer Cart

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Advantage:For smaller loads, manual carts can be dedicated to specific work activities such as shuttling materials

Description

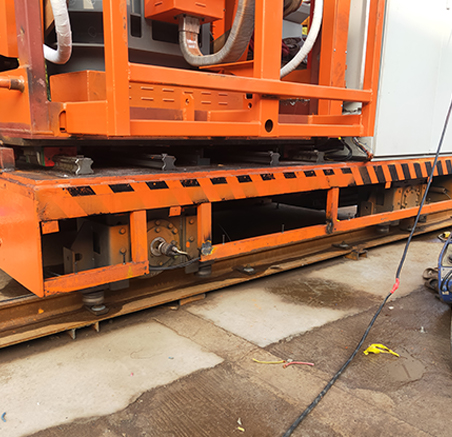

The BHX series transfer cart is powered by the busbar .The alternative current is supplied consistently to the pulling motor by slide knife taken from sliding contact line through electric control system ,which makes the car start ,stop ,move forward ,move backward and realize other functions .The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positioning fixture ,lifting platform ,clamping device and other auxiliary device are optional to meet different demands on various occasions .The BHX series is suitable in inflammable environment and in high frequency. On the other hand ,the travel distance is unlimited .The Busbar Powered Transfer Car Can Be Designed With Any Load Capacity And High Frequency Of Use. It Can Also Come With Lifting System For Simple Transportation. When The Running Distance Exceeds 50m, A Cable Guider Is Required To Assist The Winding. Generally, The Maximum Running Distance Is Less Than 200m.The Customized Busbar Wire Powered Industrial Transfer Cart is Powered by Busbar,and the AC 380V safety sliding line is directly introduced into the AC control system of the Transfer Trolley to control the Transfer cart start,stop,move forward,move backward and realize other functions.

The Busbar Powered Transfer Vehicle Is Powered By The Busbar.The Alternative Current Is Supplied Consistently To The Pulling Motor By Slide Knife Taken From Sliding Contact Line Through Electric Control System.The Sliding Contact Line Can Be Installed In The Middle Of The Tracks Or By The Outside Of The Tracks Or In The Trench Or Under The Roof Of The Plant. Positioning Fixture, Lift Platform, Clamping Device And Other Auxiliary Device Are Optional To Meet Different Demands On Various Occasions. The BHX Series Transfer Vehicle Is Suitable In Inflammable Environment And In High Frequency.

The Customized Busbar Wire Powered Industrial Transfer Cart is designed for transport products,so the main function is transportation.Owing to customized product for transport,the following functions can be customized also.

1. Promotion and Demotion:The BHX series Transport Cart can add hydraulic,mechanical and other lifting devices.

2. Turn on one’s side:The BHX series Transfer Car can add hydraulic,mechanical and equal rollover device.

3. Table rolling:The BHX series Transport Cart can add roller device,which can achieve the cylindrical workpiece flip and planar workpiece smooth movement function.

4. Other functions can be customized.

The Control Box On Cart Equipped With Emergency Stop Buttons On The Power Master Switch, The Electrical Control System Is Equipped With Power Protection, Short Circuit Protection, Arge Current Protection, Low-Voltage Protection, Zero Protection, Emergency Stop Protection And Security Label And So On, These Equipment Make The Operation And Control Of The Flat Car More Secure And Reliable.

Features for transfer cart:

1. High frequency of use, unlimited running time. 2. Easy operation and low cost.

3. The operating distance is less than 200 meters.

4. Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other

environments.

5. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.

Parameters

Rated load(t) BHX-2t BHX-10t BHX-20t BHX-30t BHX-40t BHX-50t BHX-63t BHX-80t BHX-100t BHX-150t
Wheel base(mm) 1200 2600 2800 3200 3800 4200 4300 4700 4900 7000
Wheel quantity 4 4 4 4 4 4 4 4 4 4
Ground clearance(mm) 50 50 50 50 50 50 75 75 75 75
Running speed(min) 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 20 18
Motor power 0.8 1.5 2.5 4 5.5 5.5 7.5 7.5 11 15

06a8d45ac8d59e32af2c540d0235f12

Process

  • High frequency of use, unlimited running time.

  • Easy operation and low cost.

  • Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments.

  • Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

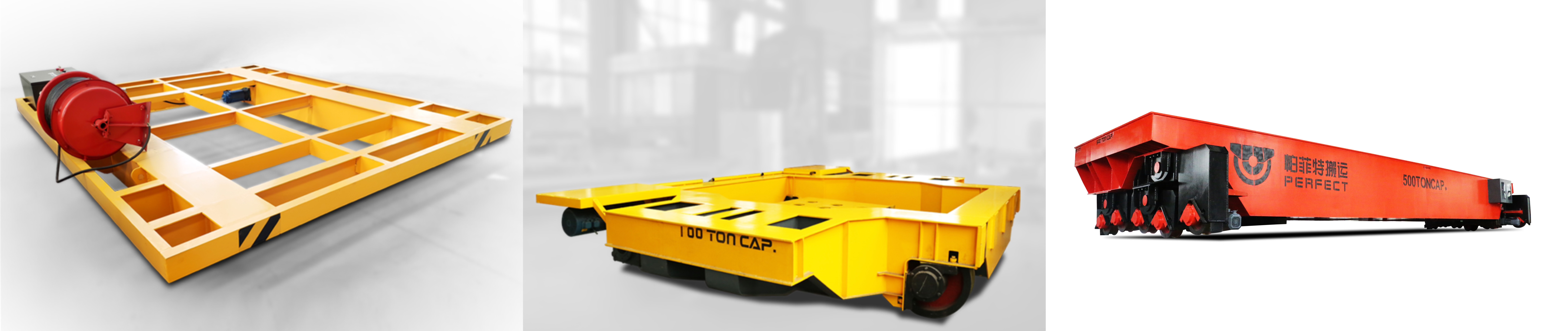

Hot Products

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

  • Load Capacity:
  • Whether car is self -propelled:
                                                                 If yes ,the power is from:
  • Table size:
  • Traveling distance:
    Use Place:
  • Name*:
    Email*:
  • Phone:
    Country:
  • Message:

Application

Environment Requirements:

Temperature:-20 ℃-80℃

Humidity:relative humidity ≤70%

Environmental PH:work under neutral or neutral conditions

Air purity:Non-corrosive floatation, no flammable and explosive gas

Power continuity rate:25%

Application place:

Slope:≤2.8°

Smoothness: ±2cm/m

cleanliness: Site requirements no visual garbage, no > 1cm raised defects, etc.

Not suitable for flammable and explosive, dust pollution and other special environment.

Suitable for metallurgical, coal, mechanical and electrical, heavy industry, shipbuilding, light industry, high working intensity, no indoor dust, no water environment.
