Load capacity: 5-500T Customized
Dimensions: Tailored to your specifications
Running speed：0-20m/min
Working direction: Forward/Backward/Turntable/Lifting/
Power supply: Battery /Cable /Busbar
Grade ability：≤3%
Positioning accuracy ±10mm
Stop accuracy ±10mm
Safe induction range ≤3m adjustable
Charging method: Automatic/Manual/Replace the battery
Handling Material: Coil, Steel coil, Aluminum coil, Galvanized coil, Rolls…

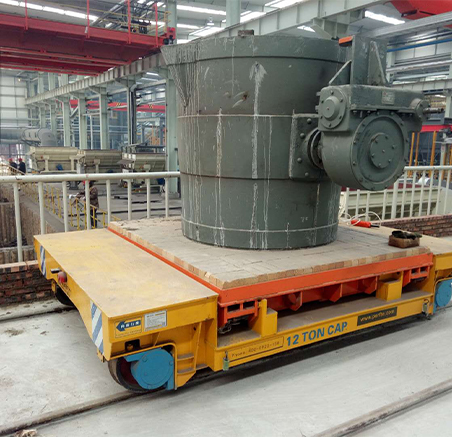

The rail electric transport car is a very practical material handling equipment. It can play an important role in industrial production and can transport a variety of items. The working principle of the rail electric transport car is mainly composed of the mutual cooperation of three major systems (power, safety and control), and the running distance is not limited, and it can be used in explosion-proof and turning occasions.
First of all, the power system is one of the most core systems of the rail electric transport car. It provides the power required for the operation of the transport car and ensures the normal operation of the production line. The electric transport car is powered by a battery and uses a DC motor. It has a strong starting torque and starts smoothly. It can meet the needs of high- intensity work; at the same time. it also has the advantages of no pollution, low noise, environmental protection and energy saving. and is a very good power source.
Secondly, the safety system is also one of the necessary systems of the rail electric transport car. In the production line, safety is one of the most important factors. The rail electric transport car uses high-strength and wear-resistant materials to ensure the stability and safety of the transport car when running and stopping. Anti-collision buffers and emergency stop buttons are installed on the car body to ensure safety during operation. In addition. we can also design explosion-proof, moisture-proof. dust-proof and other safety devices according to the requirements of the production environment to ensure the safety of the transport car.
Finally. the control system is an important part of the rail electric transport car. which can ensure the accuracy of the operation and operation of the transport car. The control system can operate the transport car through wireless remote control or manual control. At the same time, the control system can also monitor the operating status of the transport car.detect abnormal conditions in time. and avoid unexpected situations.
In short, the three major systems of the rail electric transport car work together to ensure the stability and safety of the transport car operation. It has the characteristics of unlimited running distance, explosion-proof and turning. and plays an important role in industrial production.
| Capacity Load | Customizable from 5t to 500t |
| Dimensions | Tailored to your specifications |
| Carrier Type | Platform type for versatile applications |
| Drive Form | Steering wheel drive for precise control |
| Guide Control | Rail guidance for accuracy |
| Running Speed | 20m/min |
| Communication Method | Industry WIFI |
| Power Supply | Battery/Cable/Busbar/Low volatge rail |
| Charging | Automatic/Manual |
| Operation Mode: | 24 hours |
| Accuracy | Positioning ±10mm, Stop ±10mm |
| Safety Features | Radar scanning, Emergency button, Voice alert, Light alarm |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
