Coil Transfer Cart

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Movements: 360° rotation (Carouse) and crab movement (horizontal and diagonal movememnt )

Description

Coil car (also referred to as "steel coil cars" or "coil steel cars") is a special type of rolling stock designed to transport sheet metal coils (i.e. coils) - steel coils, which are usually There is a V-shaped frame, because the steel coil is a cylinder and it is easy to fall, so there is a V-shaped frame.

It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This battery operated platform cargo transfer carts on rail manufacturer has the advantage of moving the entire length of the manufacturing facility,where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane.

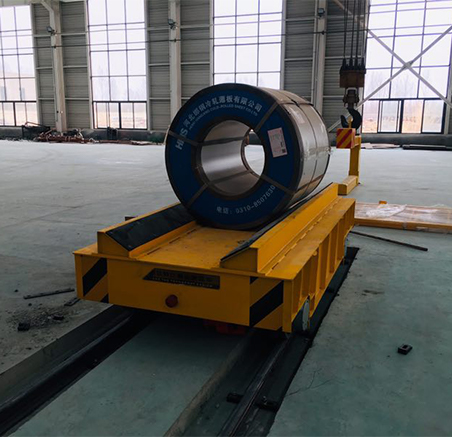

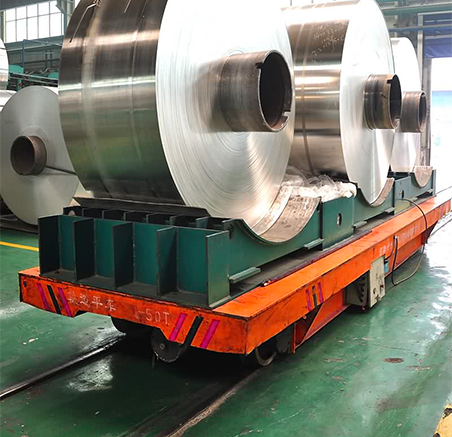

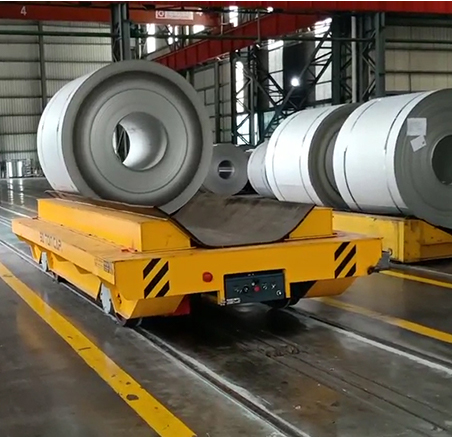

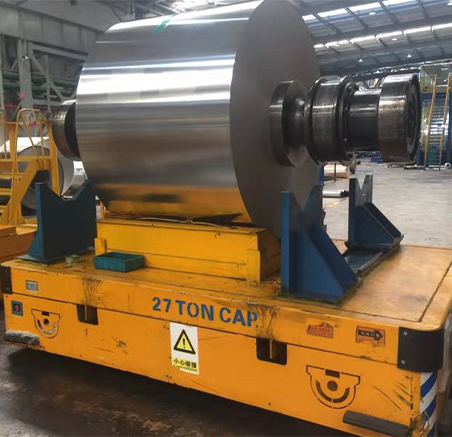

Coil transfer cart from Perfect is a transfer cart with removable v-decks or rollers. The v-decks and rollers attached to the platform of the transfer cart are designed to make the coils run more smoothly and prevent them from falling off. The distance between the v-decks on the transfer cart platform can be adjusted according to the size of the coils and is mainly used for handling and transporting coils of metal, including coils and rolls. You can also read the solution article about Coil Transfer Cart Turkey.

We offer perfectly engineered Coil Transfer Trolleys. They come in different specifications and capacities to meet industrial demand. These transfer trolleys are ideal for coils, billets, or saw pipes. They effectively handle and transfer the pipes, billets, and coils. These machines are designed to deliver optimum performance and safety. There are good capacities, up to 500 tons, and speeds up to 30 m/min. Equipped with Electric motor / hydraulic motor-based gearbox, they provide consistent performance and support.

Coil transfer carts have two options from Perfect, one is rail transfer carts with fixed track, and another is coil trackless transfer carts which can run in any direction according to the running route.

We create special solutions with our specially crafted coil transfer carts to meet your business needs and ensure uninterrupted product flow between workshops.

Parameters

Modle

KPX-10T

KPX-30T

KPX-50T

KPX-80T

KPX-100T

Table Size (m)

3.6*2.0*0.5

4.5*2.2*0.6

5.5*2.5*0.65

6.0*2.6*0.8

6.5*2.8*0.9

Rail inner Gauge

1435mm

1435mm

1435mm

1800mm

2000mm

Wheel Dia.

350mm

400mm

500mm

600mm

600mm

Running Speed

0-20m/min

0-20m/min

0-20m/min

0-20m/min

0-20m/min

Motor Power

1.6kw

3.5kw

5kw

8kw

10kw

Capacity

180Ah

250Ah

330Ah

400Ah

440Ah

Volatge

48v

48v

48v

72v

72v

Max Wheel Load

42.6Kn

110.4Kn

174Kn

278.4Kn

343.8Kn

Reference weight

4.2t

6.8t

8t

12.8t

14.6t

Recommend Rail

P24

P38

P43

P50

P100



Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Hot Products

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

  • Load Capacity:
  • Whether car is self -propelled:
                                                                 If yes ,the power is from:
  • Table size:
  • Traveling distance:
    Use Place:
  • Name*:
    Email*:
  • Phone:
    Country:
  • Message:

Application

Coil transfer carts are commonly used in manufacturing plants, warehouses, and shipping yards to transport heavy loads safely and efficiently. They are especially useful in the steel and metal industries, where large steel coils and rolls are frequently transported. Coil transfer carts can be used for a variety of applications, including loading and unloading trucks, transporting loads between facilities, and moving heavy loads around a manufacturing plant.

Coil transfer cart is a versatile piece of equipment that can make material handling easier, safer, and more efficient. When choosing a coil transfer cart, consider the type of load you need to transport, your specific application requirements, and the features and product options available. With the right coil transfer cart, you can improve your material handling operations and increase productivity in your facility.
