Coil Transfer Cart

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Core Components :PLC, Engine, Bearing, Pressure vessel, Gear, Pump

Description

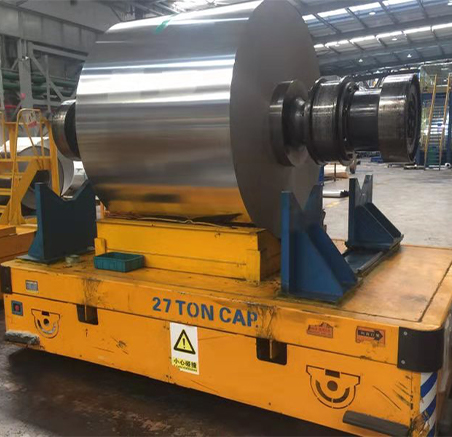

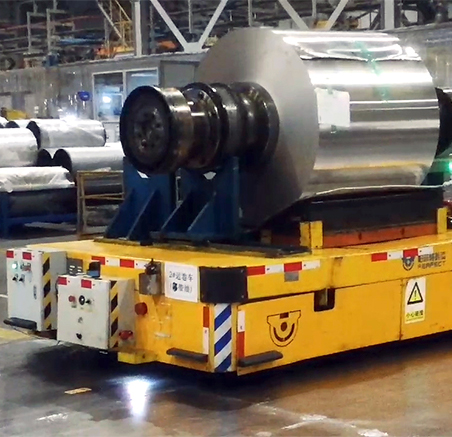

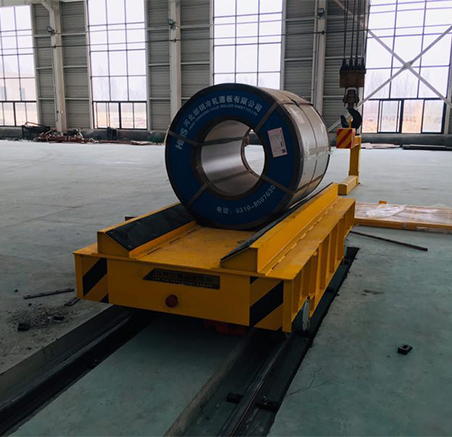

There are mounted V-shape and roller on transfer car to protect the coil from falling down from the car .The V shape supporting can be designed according to coil diameter ,and roller distance can be adjust as per coil dia .V-shape supporting and roller can be removable from car .we can design coil transfer car according to the workshop application ,material dimension and weight .It can be applied in all kinds of occasion even severe working environment .PERFECT Coil Transfer Cart are used to transport steel coils and pipes for metal industry. This Coil Transfer Cart are designed  to be an extremely cost effective, safe and flexible load moving alternative.The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.

coil car (also referred to as "steel coil cars" or "coil steel cars") is a special type of rolling stock designed to transport sheet metal coils (i.e. coils) - steel coils, which are usually There is a V-shaped frame, because the steel coil is a cylinder and it is easy to fall, so there is a V-shaped frame.

Series: Rail Transfer Vehicle Transport speed: 0-30m/min Power supply mode: track power supply/battery power supply/cable power supply Application range: metallurgy, coal, electromechanical, heavy industry and other industries Handling objects: large molds, aluminum coils, steel coils, steel, steel ingots, boilers, casting modules

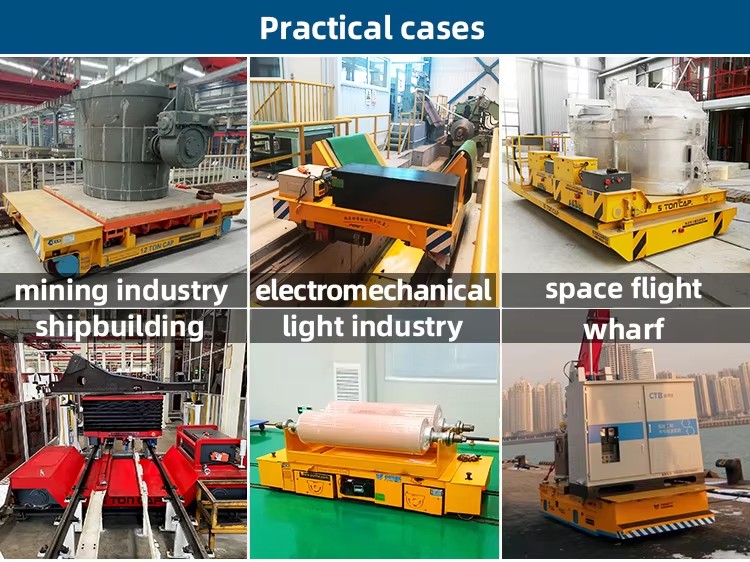

coil transfer cart 33



Parameters

Model

BJT-2t

BJT-20t

BJT-50t

 BJT-100t

BJT-150t

Rated Load(t)

2

20

50

100

150

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

500

600

700

1000

1200

Wheel Base(mm)

1200

2800

 4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

 1435

2000

2000

Wheel Diameter(mm)

270

350

 500

 600

600

Wheel Quantity

4

4

 4

 4

 8

Ground Clearance(mm)

50

50

50

 75

75

Running Speed (m/min)

0-25

 0-20

0-20

0-20

0-18

Motor Power(kw)

 0.8

2.5

5.5

11

 15

Running Distance (m)

25

30

50

50

50

Recommended Rail Model

P15

P24

 P43

QU100

QU100

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Low noise  It causes low noise level.
  • 2 Maximum safety  Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
  • 3 Easy for operation  These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
  • 4 Easy to implement into manufacturing process  Operates on standard floors; Do not require complex or permanent installation
  • 5 Suitable for All Kinds of Weight  The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Hot Products

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

  • Load Capacity:
  • Whether car is self -propelled:
                                                                 If yes ,the power is from:
  • Table size:
  • Traveling distance:
    Use Place:
  • Name*:
    Email*:
  • Phone:
    Country:
  • Message:

Application

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production.They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
