Load Capacity: 1-1500 tons
Speed: 20 m/min or ad your needs
OEM&ODM: Support
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more
Die transfer carts for heavy duty die handling, can be designed into rail and steerable, capacity of 2-500 tons.

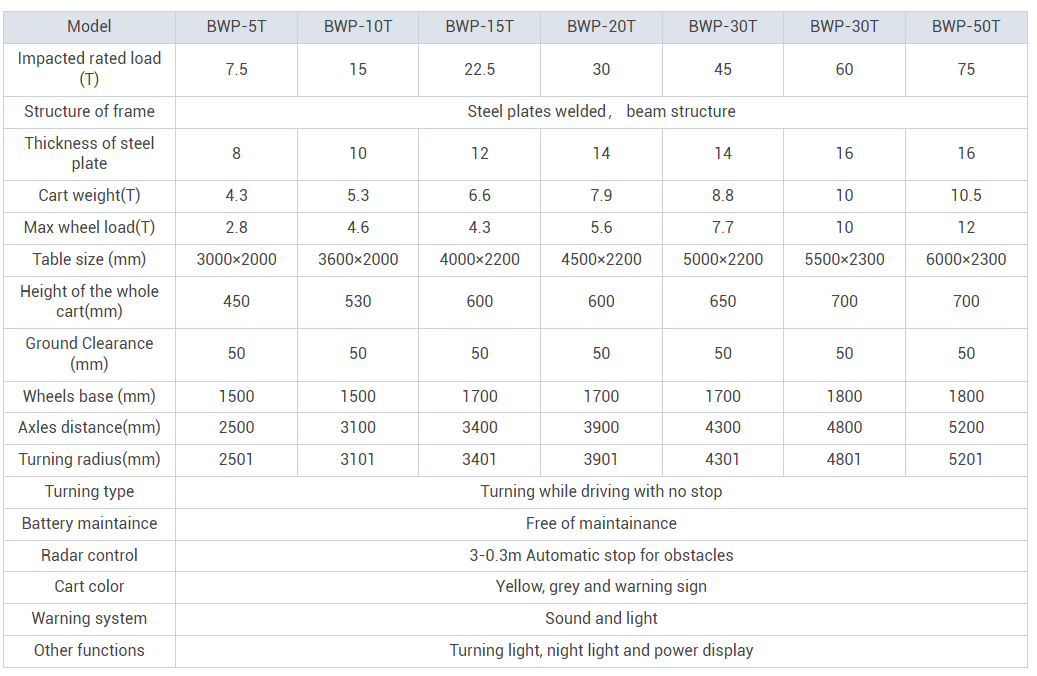

Model: BWP
Load capacity:2t-500t Optional Dimension: Can be customized
Power supply optional: Battery powered, cable reel powered, cable drum powered, busbar powered, rail powered, Diesel Wheels optional: Rubber wheel, polyurethane, mecanum wheel
Motors optional:PMAC,AC motors Certificate: CE. SGS, ISO, SASO Warranty:2 years
Delivery time: 30 days-40 days

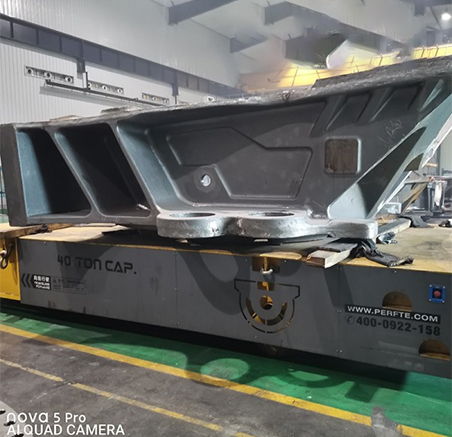

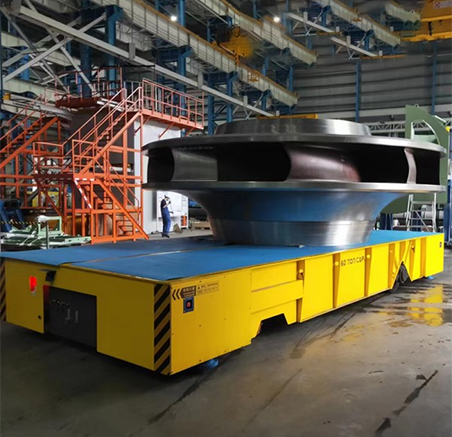

What is Die Transfer Trolley
PERFECT's die transfer cart is safely and accurately used in the transport and change of dies/molds from 5 tons to 500 tons on rail or on thecement floor or steel plate ground. Molds of different sizes can be transported via customized loading platforms, providing a flexible materialhandling solution for most industries.
At PERFECT, you can get two diferent types of die transfer troleys: die transfer cart on rail and trackless transfer cart for die handling. Tomeet more unigue needs, we can custom AGv, RGv, lifting table. battery operated transfer cart for your die/mold handling
Key Feature of Heavy Duty Die Transfer Trolley
1. Capacity 2t up to 500t
2. Table size can be customized
3. Steel plate welded frame
4.4. Power supply optional
5.Running speed: 0-20m/min
6.Can be used in indoor or environmental
7.Control system: Button control and remote control: Or PLC
8. Customized function: Hydraulic lift, robot arms, weighing, ultra-low table, titling, climbing, ferry, etc
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Die Transfer Trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The Die Transfer Trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
