Load Capacity: 1-1500 tons
Speed: 20 m/min or ad your needs
Certificate: SGS, ISO9001, SASO
Power Supply: Battery/Cable reel / Cable drum /Busbar/Low voltage rail
Wheels: Cast Steel Polyurethane Rubber Wheel
Movements: 360° rotation (Carouse) and crab movement (horizontal and diagonal movememnt )

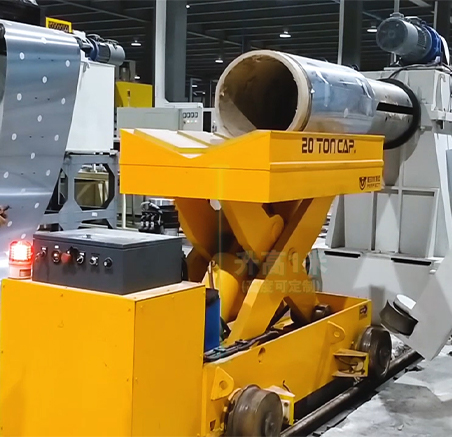

The scissor-type rail electric transfer vehicle is a modern logistics equipment that can effectively improve the efficiency and safety of logistics operations. With its unique design and excellent performance, it has become the tool of choice for many transportation industries. This article will introduce in detail the working principle, main features and application of scissor-type rail electric transfer vehicles in the logistics industry.
1. Working principle of scissor track electric transfer vehicle
The scissor-type rail electric transfer vehicle uses an electric drive system, and the motor drives the scissors to rise or fall vertically, thereby realizing the loading, unloading and transportation of goods. What makes it unique is that the vehicle can drive along the track, maintaining stability and balance.
2. Main features of scissor-type rail electric transfer vehicles
1. Flexibility: The scissor-type track electric transfer vehicle can be customized according to needs and is suitable for loading and unloading items of various specifications and weights.
2. Safety: The crawler drive design has high stability and balance, which can reduce the risk of cargo damage during transportation.
The scissor-type rail electric transfer vehicle is an indispensable advanced tool in the logistics industry. Its excellent performance and wide range of applications make it the first choice for logistics companies that pursue high efficiency and high quality.
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
PERFECT Lifting platform are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving heavy duty materials and equipments inside and outside the plant by electric traction and driving long distances. And also Lifting Platform are mainly used to solve manoeuvrability problems in tight spaces.
The battery powered transfer car has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
