Load Capacity: 1-1500 tons
Speed: 20 m/min or ad your needs
OEM&ODM: Suppo
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more
The scissor-type rail electric transfer vehicle is a modern logistics equipment that can effectively improve the efficiency and safety of logistics operations. With its unique design and excellent performance, it has become the tool of choice for many transportation industries. This article will introduce in detail the working principle, main features and application of scissor-type rail electric transfer vehicles in the logistics industry.
1. Working principle of scissor track electric transfer vehicle
The scissor-type rail electric transfer vehicle uses an electric drive system, and the motor drives the scissors to rise or fall vertically, thereby realizing the loading, unloading and transportation of goods. What makes it unique is that the vehicle can drive along the track, maintaining stability and balance.
2. Main features of scissor-type rail electric transfer vehicles
1. Flexibility: The scissor-type track electric transfer vehicle can be customized according to needs and is suitable for loading and unloading items of various specifications and weights.
2. Safety: The crawler drive design has high stability and balance, which can reduce the risk of cargo damage during transportation.
The scissor-type rail electric transfer vehicle is an indispensable advanced tool in the logistics industry. Its excellent performance and wide range of applications make it the first choice for logistics companies that pursue high efficiency and high quality.

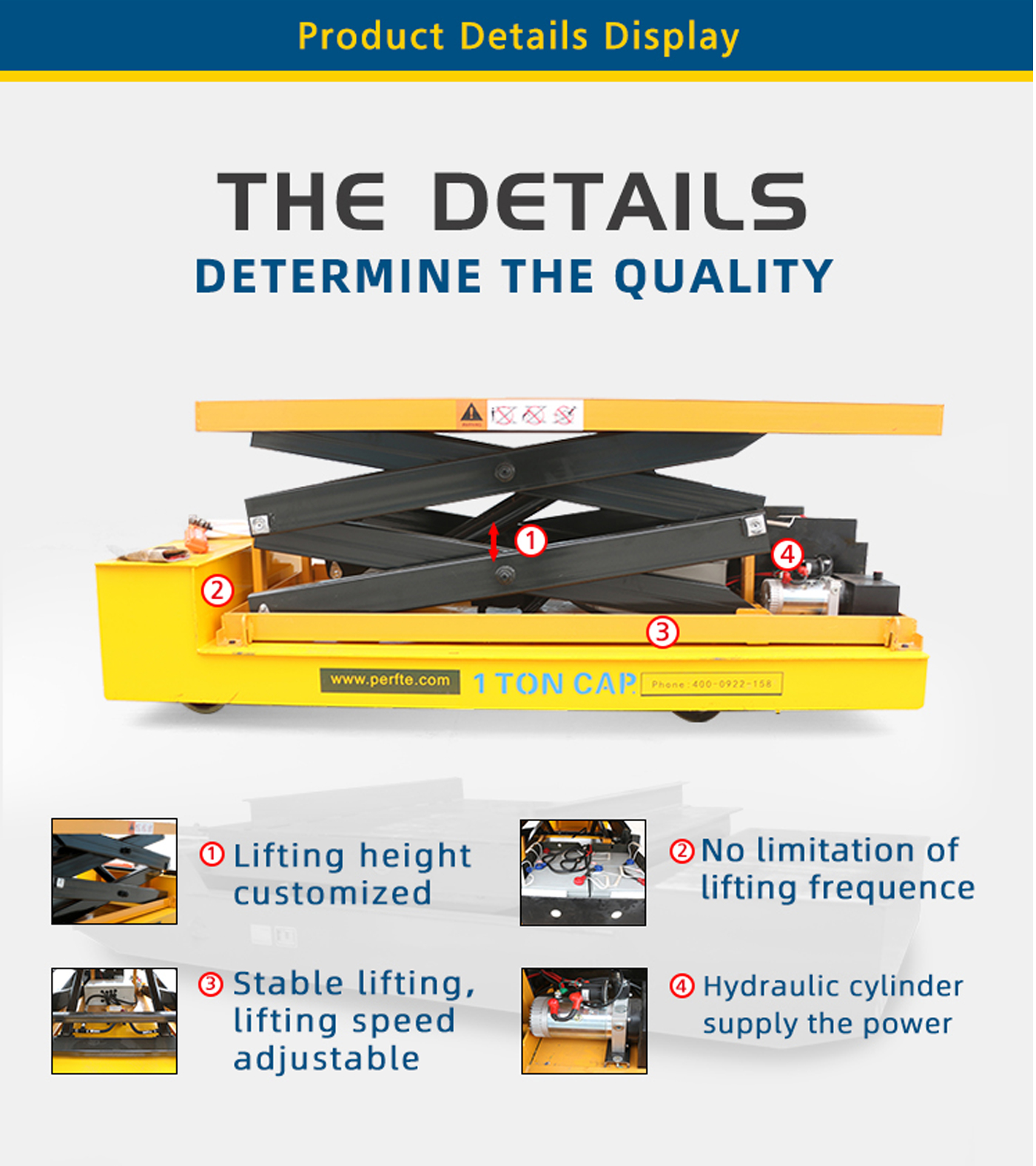

Intelligent Scissor lift rail electric transfer cart
The rail electric transfer cart is a kind of transportation equipment that adopts scissor lifting and has a high degree of stability and flexibility. The upper layer of its car body is equipped with roller rails to facilitate the transportation of goods and enable precise docking and handling of materials. At the same time, according to the actual needs of customers, customized services can also be provided to better meet user requirements.
The design of the rail electric transfer cart provides excellent stability. No matter during the lifting or transportation process, it can maintain a smooth and stable state to ensure the safe transportation of goods. The scissor lifting mechanism equipped with the rail electric transfer cart can freely adjust the height of the goods as needed, improving the convenience and efficiency of operation.
In addition to stability, rail electric transfer carts also have convenient transportation features. The upper layer of the car body is equipped with roller rails to make cargo transportation smoother. The design of the roller rail can not only reduce material friction, but also protect the surface of the goods from wear. As a result, even heavy materials or materials with sensitive surfaces can be transported easily without damage or loss.
Another advantage of rail electric transfer carts is their precision in docking and handling materials. Due to the design of the roller rail, the operator can accurately dock the transfer cart to the materials that need to be transported, avoiding the inconvenience and risk of manual handling. At the same time, the scissor lifting mechanism equipped with the transfer cart can raise or lower the material as needed, further increasing the flexibility and accuracy of the operation.
In addition, the rail electric transfer cart also has the characteristics of customization. According to the actual needs of customers, we can customize transfer carts of different sizes and load capacities to meet the material transportation needs of different occasions. At the same time, other auxiliary equipment, such as turning mechanisms, fixtures, etc., can also be added according to customer requirements to better adapt to special working environments and operating requirements.
In short, the rail electric transfer cart is a kind of transportation equipment with high stability and flexibility. Its features include stable transportation process, convenient cargo handling, precise docking and flexible customized services. Whether on industrial production lines or warehousing and logistics sites, rail electric transfer carts can play an important role in improving the efficiency and safety of material transportation.
PERFECT Mechanical and Electrical Co., Ltd. is a professional and international handling equipment enterprise integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.
The company was established in September 2015 and is located in Xinxiang City, Henan Province. It covers an area of 33,300 square meters and has modern large-scale factories, world-leading production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class R&D and design team that can undertake the design and production of various non-standard handling equipment. And we provide specialized customized services and have a professional technical team to answer your questions.
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

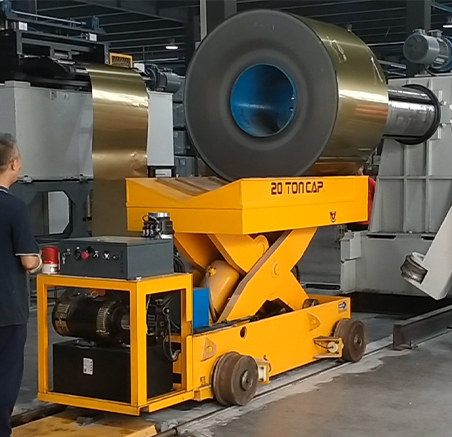

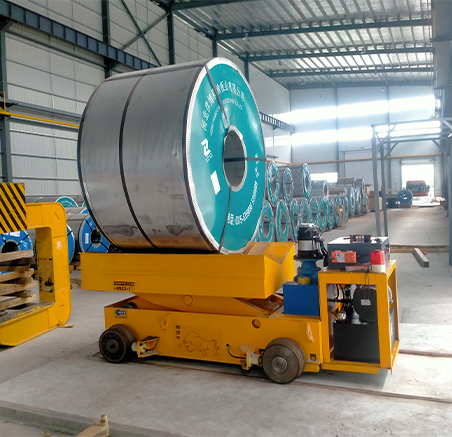

The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
