Load Capacity: 1-1500 tons
Speed: 20 m/min or ad your needs
Certificate: SGS, ISO9001, SASO
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Movements: The steerable transfer cart is an altHeightofthe whole cart(mm)ernative transfer cart with the high capacity and quality, which has been popular product in material handling field.
PRODUCT DESCRIPTION

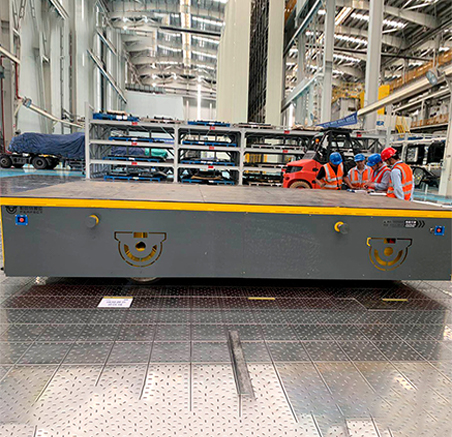

The steerable transfer cart is an alternative transfer cart with the high capacity and quality, which has been popular product in material handling field. It not only overcomes many inconveniences of rail transfer carts and cranes due to limited working area, but dramatically reduce the material handling requirements of cranes and forklift while providing quick, safe and smooth movement of materials or objects through manufacturing facilities.
The steerable transfer carts can not only finish free-turning without the rail in the workshop, but also run on the straight line. Therefore, it does not affect traffic, does not hinder production, and the transfer cart is more flexible, the operation is more humanized.BEFANBY can make different type cart to meet client's requirements all over the world.
NEW FUNCTION:
1.The steerable transfer cart can realize go straight by a special device, other steerable transfer cart is difficult to realize it completely, which is our patent technical design.
2.Only one button control it to turning, otrher supplier can not realize it.
3.Smaller Turning Radius can realize by this design compared with other steerable transfer cart.
4. Save the cost more compared Previous design.
MAIN FEATURE:
1.Customized capacity from 1 ton to 1500 tons
2.Battery powered(Optional power source)
3.Robust Sturdy Frame
4.Omnidirectional: various steering on client request (normal, 90°, diagonal, 360°and many others)
5.Maintenance Free Battery and Intelligent Charger
6.Low battery alarm device. It will alarm, when the battery power is too low.
7.Any kind of wheels (polyurethane, vulkollan, solid, super elastic or pneumatic))
8.Anti-explosion, anti-high temperature, anti-water,anti-dust, etc
9.Customized system(lifting,weighing, titling,climbing,ferry, plc, etc.)
10.Optional Control System (Operation handle / Remote Controller / Cabin)
11.Safety System(LED flashing lights, Sound acoustic devices,E-stop, Dead man stop, Buffer, etc.)12.Speed up to 10 Km/h
13.Well known components brand.
PERFECT engineering team will always provide the optimal guiding method based on your site layout and requests to offer you the best product with the competitive price.
| Rated load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded ,beam structure | ||||||
| Max.wheel load(t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor Steel plate ground | ||||||
| Table size(mm) | 3000*2000 | 3600*2000 | 4000*2200 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 6000 | 650 | 700 | 700 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 650 | 700 | 700 | 700 |
| Charger's installation | Install on cart | Split -type | |||||
| Charger function | Automatic charging | ||||||
| Cart color | Yellow and warning sign | ||||||
| Radar control | Automatic stop for obstacles | ||||||
Customized:
The load capacity, table size, color of the Pallet transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
