Turntable Rail Transfer Cart

Load Capacity: 1-500tons

Speed: 20 m/min or as your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel/ Polyurethane Rubber Wheel

Safety Device: Emergency Stop Button And Limit Switch

Send E-mail Get Price
Download Pdf

Description

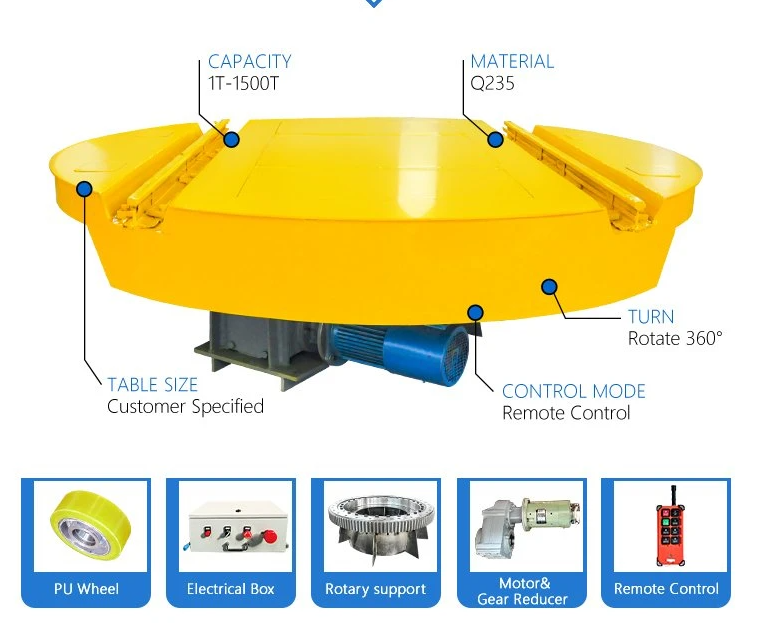

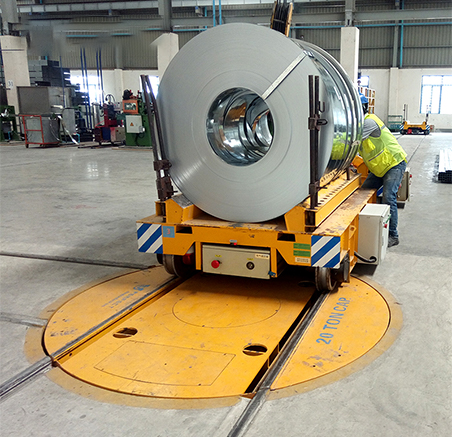

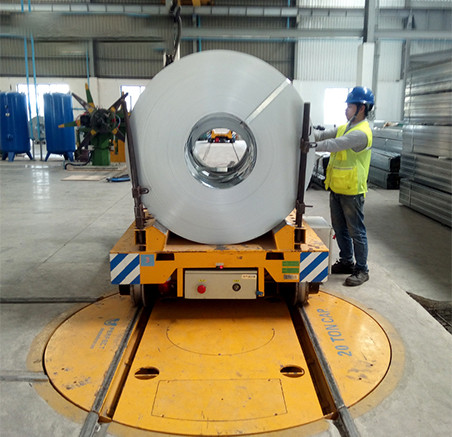

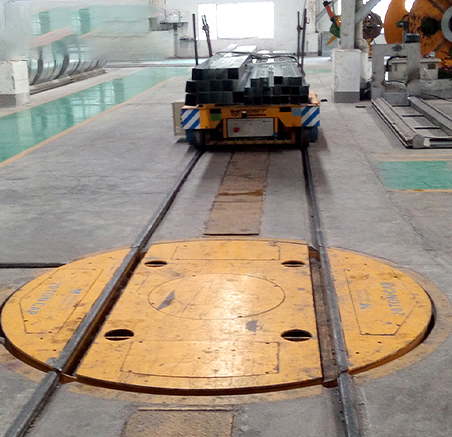

The Transfer Turntable is designed for 90-degree direction changes across cross rails in warehouses and manufacturing plants. Its core working principle is simple yet efficient: the turntable is equipped with matching rails. When the rail transfer cart moves onto the turntable, the turntable can rotate automatically or manually—achieving precise alignment with the target rail—before the cart travels onto the vertical rail. It is widely suitable for scenarios such as circular rails, vertical rails, and crossing rails, featuring stable operation, high rail alignment accuracy, and full compatibility with automatic electrical control systems.

Key Advantages

  • Low Operating Noise: Operates with minimal noise, ensuring a comfortable and non-intrusive working environment for on-site workers, without affecting daily production efficiency.
  • Energy-Efficient & Eco-Friendly: Optimized power consumption design reduces energy costs significantly, aligning with green factory standards and sustainable operation goals.
  • Wide Application Scope: Ideal for frequent material handling in warehouses, manufacturing facilities, and assembly lines. It performs reliably in extreme temperature conditions, ranging from -40℃ to 50℃, adapting to diverse industrial environments.
  • Comprehensive Safety Features: Equipped with emergency stop buttons, flashing warning lights, safety proximity sensors, and audible alarms. These multi-layered safety designs fully protect operators and materials, even in high-pressure production scenarios.
  • Customizable Solutions: Tailored to meet specific industry needs, including customization options for load capacity, turntable size, rail gauge, power supply (battery/cable), color, and protection grades (e.g., explosion-proof for chemical plants).

turntable transfer cart

Parameters

Model BZP-2T BZP-10T BZP-20T BZP-30T BZP-50T BZP-63T BZP-150T
Rated load(T) 2 10 20 30 50 63 150
Table size(mm) length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 500 550 600 650 700 800 1200
Wheel Diameter(mm) D270 D300 350 0400 D500 D600 中600
Wheel Quant y 41 4 4 4 4 4 8
Running speed(min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power(Kw) 0.8 1.5 2.5 4 5.5 7.5 15
Max Wheel Load(KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100



Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2Options : Remote radio control (imported or made in China)
  • 3Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Hot Products

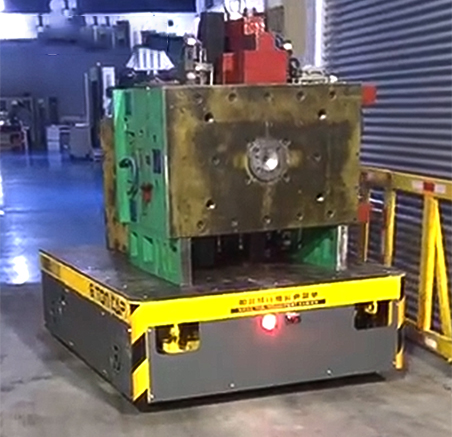

Trackless Transfer Cart

Industrial trackless material handling and transportation vehicle, flexible rotation, easy operation, high load-bearing capacity

Heavy Duty Transfer Cart

Coil Transfer Cart for Metallurgical Coil Heavy-Load Handling

Coil Transfer Cart

Manual Transfer Cart

Turntable Transfer Cart

A tractor for industrial trucks used for heavy material transportation, which can be used to tow trailers for travel

Factory supply Truck Tractor

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

    • Load Capacity:
    • Whether car is self -propelled:
                                                                   If yes ,the power is from:
    • Table size:
    • Traveling distance:
      Use Place:
    • Name*:
      Email*:
    • Phone:
      Country:
    • Message:

    Application

    PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, trailer  and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

    The working principle of Turntable Rail Transfer Cart is as follows: the AC 380V power supply is stepped down to the AC 36V two-phase through the transformer and connected to the two rails respectively. The wheels on the track flat car introduce the AC 36V power supply on the track into the vehicle electrical equipment. The box, through the rectifier module, rectifies the AC 36V to DC 36V and then controls the DC motor through the DC control system to make the flat start, stop, advance, retreat, speed regulation and so on.
